| Combination Wrench | ||||||||

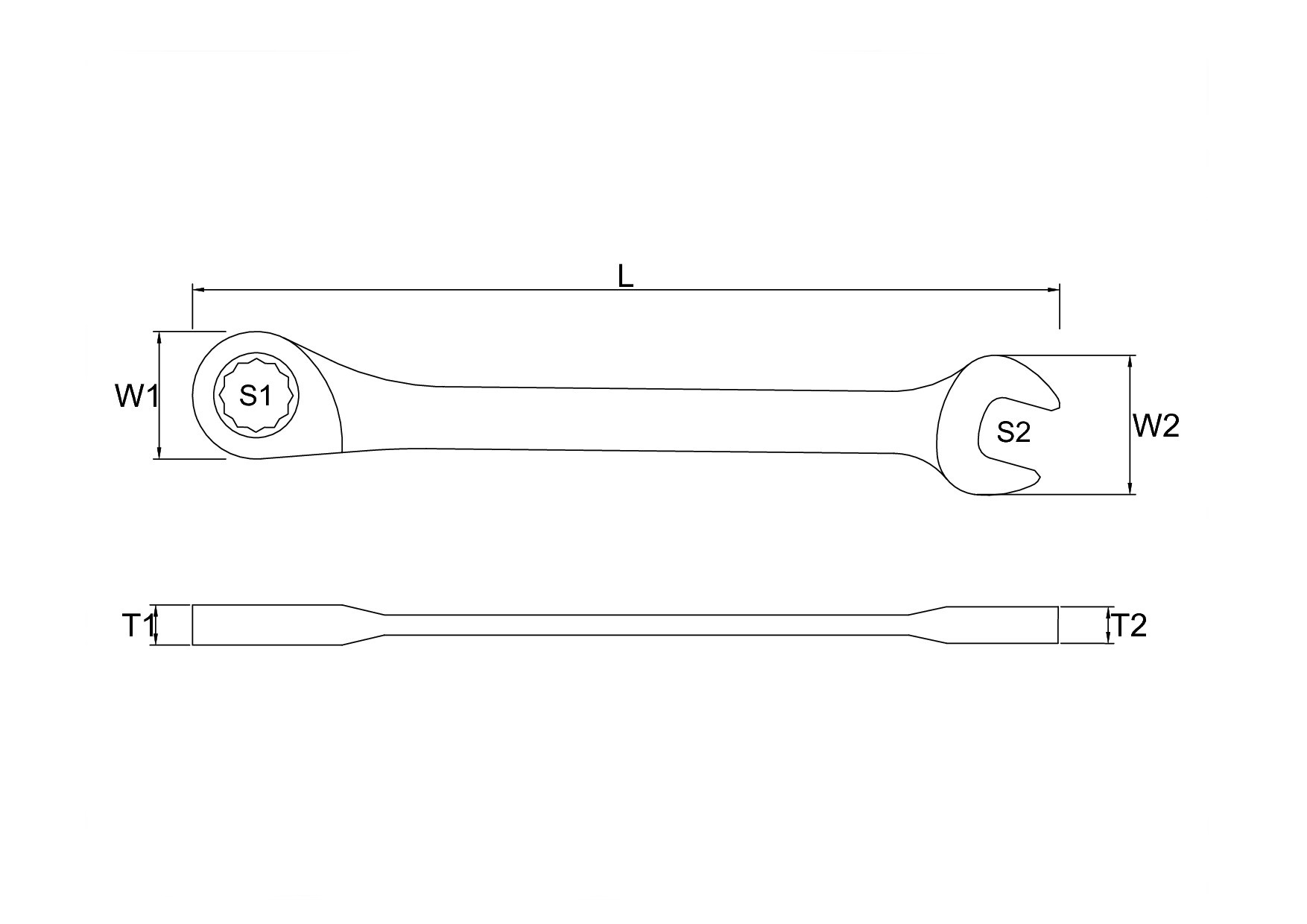

| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| CO-06 | 6 | 6 | 6 | 144 | 17.0 | 18.0 | 7.2 | 4.0 |
| CO-07 | 7 | 7 | 7 | 144 | 17.0 | 18.0 | 7.2 | 4.0 |
| CO-08 | 8 | 8 | 8 | 144 | 17.0 | 18.0 | 7.2 | 4.0 |
| CO-09 | 9 | 9 | 9 | 150 | 20.0 | 20.0 | 7.5 | 4.2 |
| CO-10 | 10 | 10 | 10 | 157 | 20.0 | 23.0 | 7.5 | 4.8 |
| CO-11 | 11 | 11 | 11 | 165 | 22.0 | 24.0 | 8.0 | 5.2 |
| CO-12 | 12 | 12 | 12 | 172 | 24.0 | 26.0 | 8.5 | 5.5 |
| CO-13 | 13 | 13 | 13 | 182 | 24.0 | 30.0 | 8.5 | 6.2 |
| CO-14 | 14 | 14 | 14 | 189 | 27.0 | 30.0 | 8.5 | 6.6 |
| CO-15 | 15 | 15 | 15 | 202 | 27.0 | 32.0 | 8.5 | 7.0 |
| CO-16 | 16 | 16 | 16 | 216 | 30.0 | 35.0 | 10.0 | 7.3 |
| CO-17 | 17 | 17 | 17 | 226 | 30.0 | 35.0 | 10.0 | 7.6 |
| CO-18 | 18 | 18 | 18 | 237 | 38.0 | 37.0 | 11.5 | 7.8 |
| CO-19 | 19 | 19 | 19 | 248 | 38.0 | 39.0 | 11.5 | 8.0 |
|
CO-20 |
20 | 20 | 20 | 260 | 41.7 | 40.6 | 12.4 | 9.3 |
| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| CO-25 | 5/16" | 5/16" | 5/16" | 144 | 17.0 | 18.0 | 7.2 | 4.0 |
| CO-30 | 3/8" | 3/8" | 3/8" | 157 | 20.0 | 23.0 | 7.5 | 4.8 |
| CO-35 | 7/16" | 7/16" | 7/16" | 165 | 22.0 | 24.0 | 8.0 | 5.2 |
| CO-40 | 1/2" | 1/2" | 1/2" | 182 | 24.0 | 30.0 | 8.5 | 5.5 |
| CO-45 | 9/16" | 9/16" | 9/16" | 189 | 27.0 | 30.0 | 8.5 | 6.6 |
| CO-50 | 5/8" | 5/8" | 5/8" | 216 | 30.0 | 35.0 | 10.0 | 7.3 |
| CO-55 | 11/16" | 11/16" | 11/16" | 226 | 30.0 | 35.0 | 10.0 | 7.6 |
| CO-60 | 3/4" | 3/4" | 3/4" | 248 | 38.0 | 39.0 | 11.5 | 8.0 |
