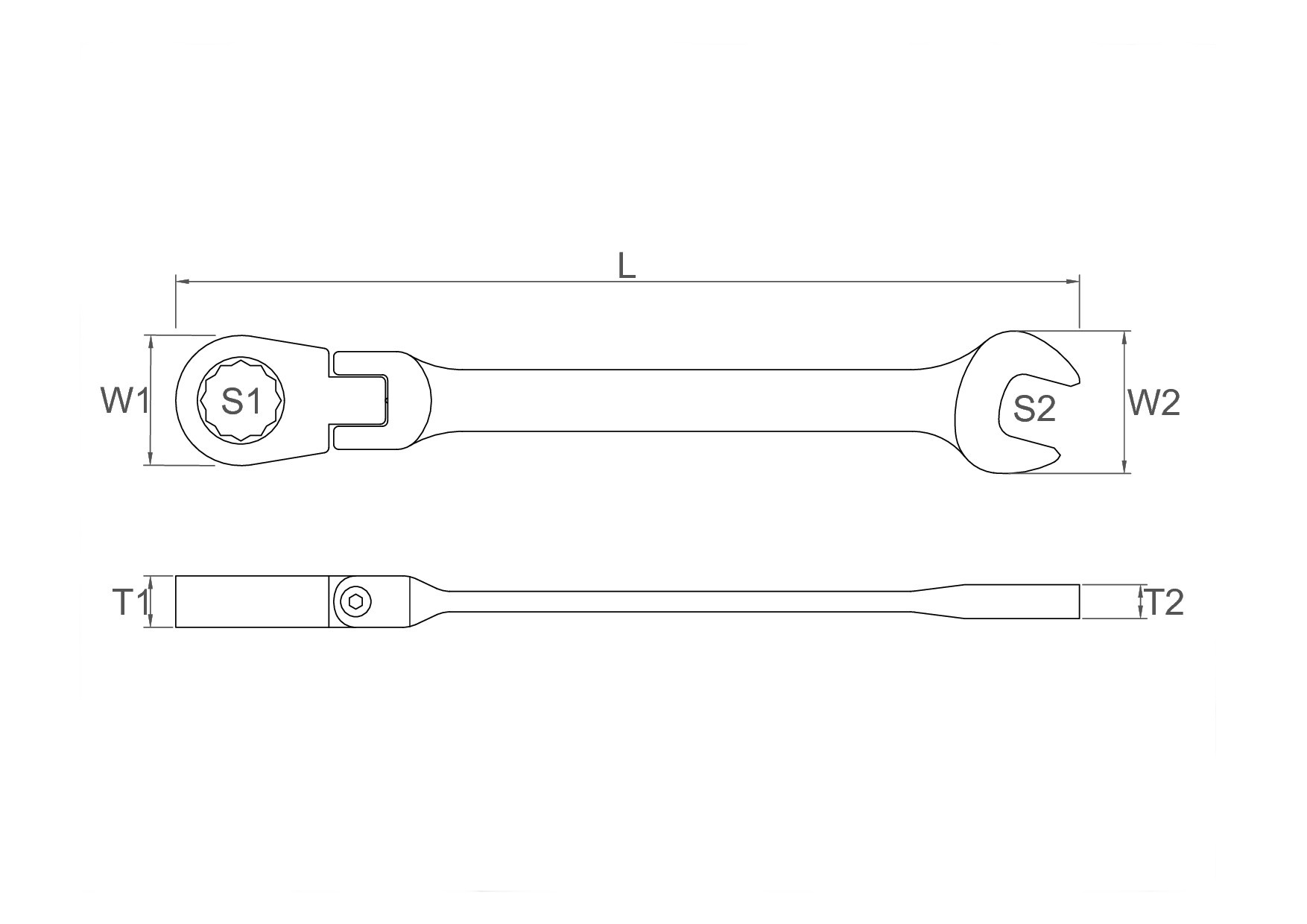

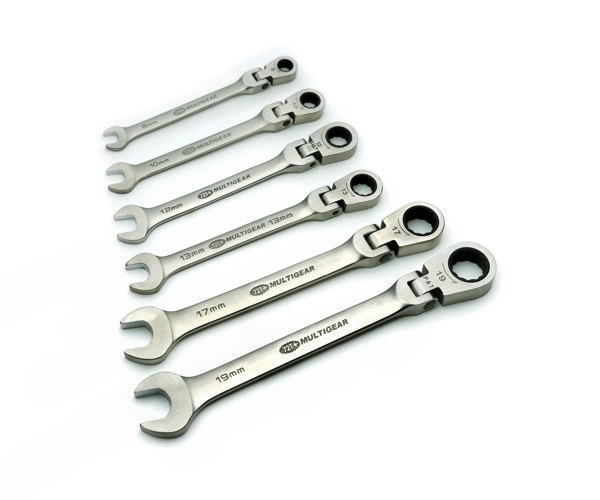

| Flaxable Combination | ||||||||
| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| FCO-08 | 8 | 8 | 8 | 143 | 17.0 | 18.0 | 9.0 | 5.5 |
| FCO-09 | 9 | 9 | 9 | 152 | 20.0 | 20.0 | 10.0 | 6.0 |
| FCO-10 | 10 | 10 | 10 | 158 | 20.0 | 23.0 | 10.0 | 6.0 |
| FCO-11 | 11 | 11 | 11 | 164 | 22.0 | 24.0 | 10.0 | 6.0 |
| FCO-12 | 12 | 12 | 12 | 171 | 24.0 | 26.0 | 10.0 | 6.5 |
| FCO-13 | 13 | 13 | 13 | 177 | 24.0 | 30.0 | 10.0 | 6.5 |
| FCO-14 | 14 | 14 | 14 | 187 | 27.0 | 30.0 | 10.0 | 7.0 |
| FCO-15 | 15 | 15 | 15 | 195 | 27.0 | 32.0 | 10.0 | 7.0 |
| FCO-16 | 16 | 16 | 16 | 211 | 30.0 | 35.0 | 13.0 | 8.0 |
| FCO-17 | 17 | 17 | 17 | 220 | 30.0 | 35.0 | 13.0 | 8.0 |
| FCO-18 | 18 | 18 | 18 | 235 | 38.0 | 37.0 | 13.0 | 9.0 |
| FCO-19 | 19 | 19 | 19 | 244 | 38.0 | 39.0 | 13.0 | 9.0 |
| FCO-24 | 24 | 24 | 24 | 285 | 46.9 | 48.4 | 14.3 | 9.8 |
| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| FCO-25 | 5/16" | 5/16" | 5/16" | 143 | 17.0 | 18.0 | 9.0 | 5.5 |
| FCO-30 | 3/8" | 3/8" | 3/8" | 158 | 20.0 | 23.0 | 10.0 | 6.0 |
| FCO-35 | 7/16" | 7/16" | 7/16" | 164 | 22.0 | 24.0 | 10.0 | 6.0 |
| FCO-40 | 1/2" | 1/2" | 1/2" | 177 | 24.0 | 30.0 | 10.0 | 6.5 |
| FCO-45 | 9/16" | 9/16" | 9/16" | 187 | 27.0 | 30.0 | 10.0 | 7.0 |
| FCO-50 | 5/8" | 5/8" | 5/8" | 211 | 30.0 | 35.0 | 13.0 | 8.0 |
| FCO-55 | 11/16" | 11/16" | 11/16" | 220 | 30.0 | 35.0 | 13.0 | 8.0 |
| FCO-60 | 3/4" | 3/4" | 3/4" | 244 | 38.0 | 39.0 | 13.0 | 9.0 |
