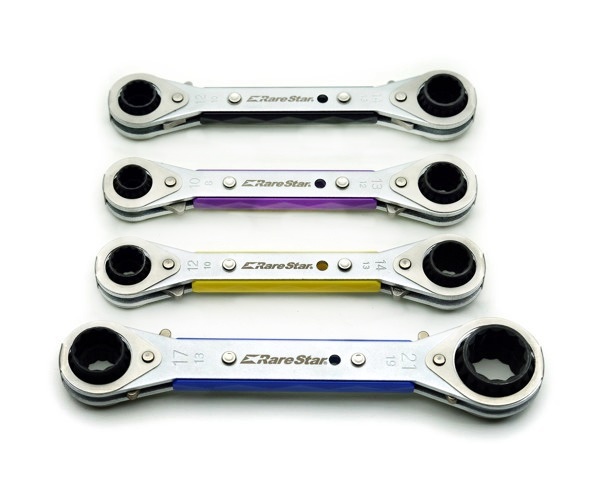

Ball Ratchet
| Ball Ratchet | ||||||||||

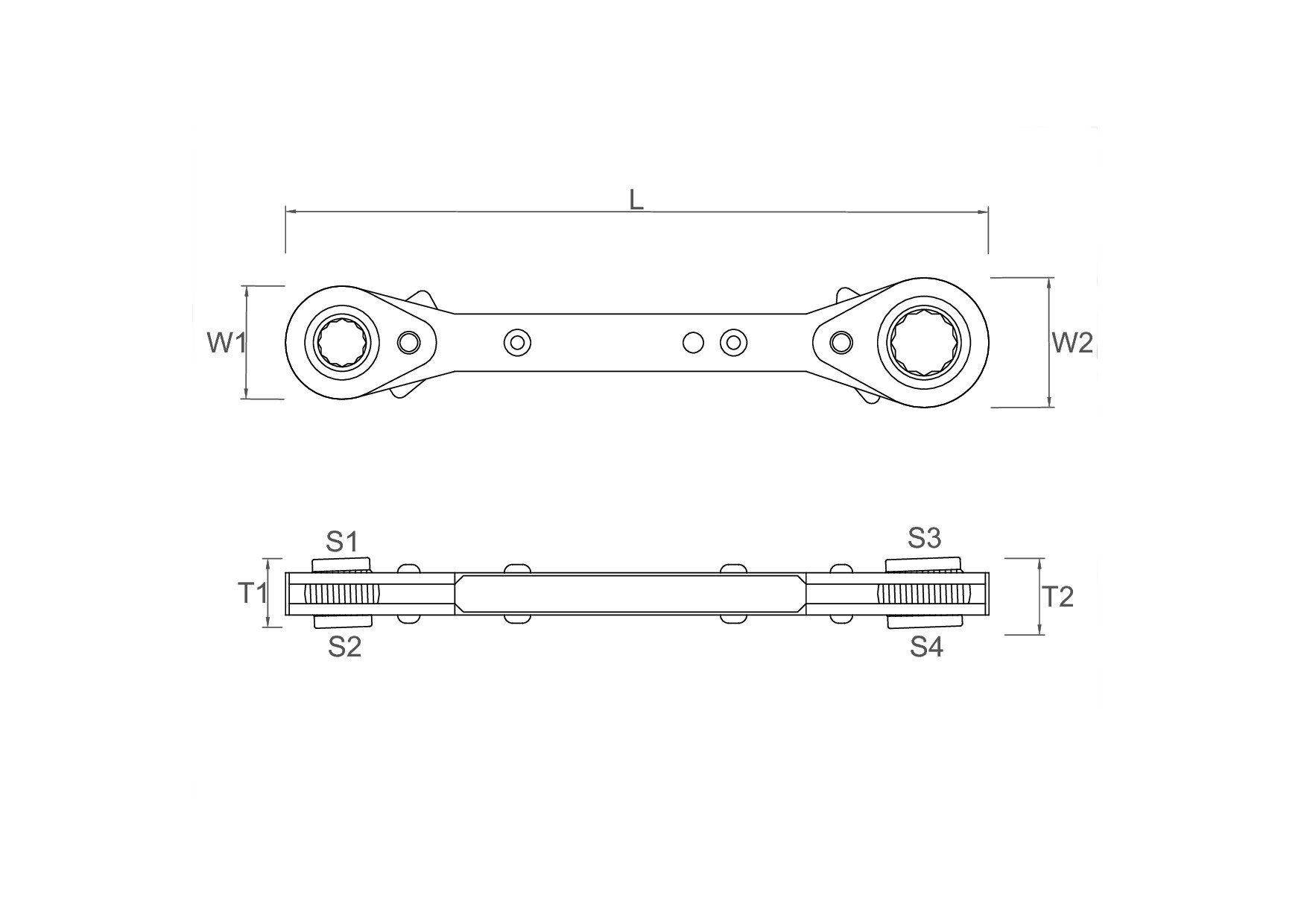

| ITEM NO. | SIZE | S1 | S2 | S3 | S4 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||||
| UW8913 | 8x9˙11x13 | |||||||||
| UW8023 | 8x10˙12x13 | 10 | 8 | 13 | 12 | 170 | 27.7 | 31.7 | 19.7 | 21.7 |
| UW0234 | 10x12˙13x14 | 12 | 10 | 14 | 13 | 173 | 29.0 | 32.0 | 19.5 | 27.5 |
| UW2457 | 12x14˙15x17 | |||||||||
| UW3791 | 13x17˙19x21 | 17 | 13 | 21 | 19 | 208 | 35.3 | 42.6 | 24.7 | 25.1 |
| UW4791 | 14x17˙19x21 | 17 | 14 | 21 | 19 | 208 | 35.3 | 42.6 | 24.7 | 25.1 |
| UW5791 | 15x17˙19x21 | |||||||||
