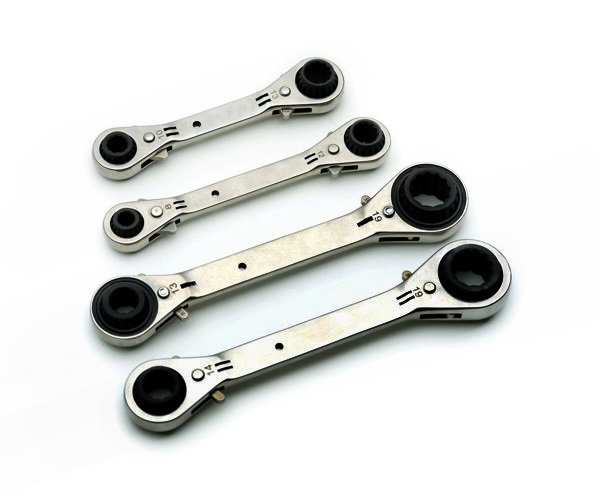

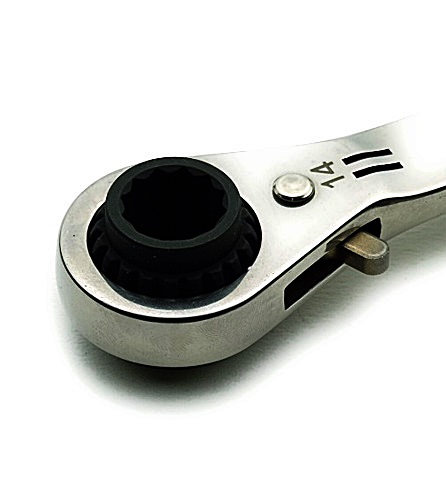

Stainless Ball Ratchet
| Ball Ratchet | ||||||||||

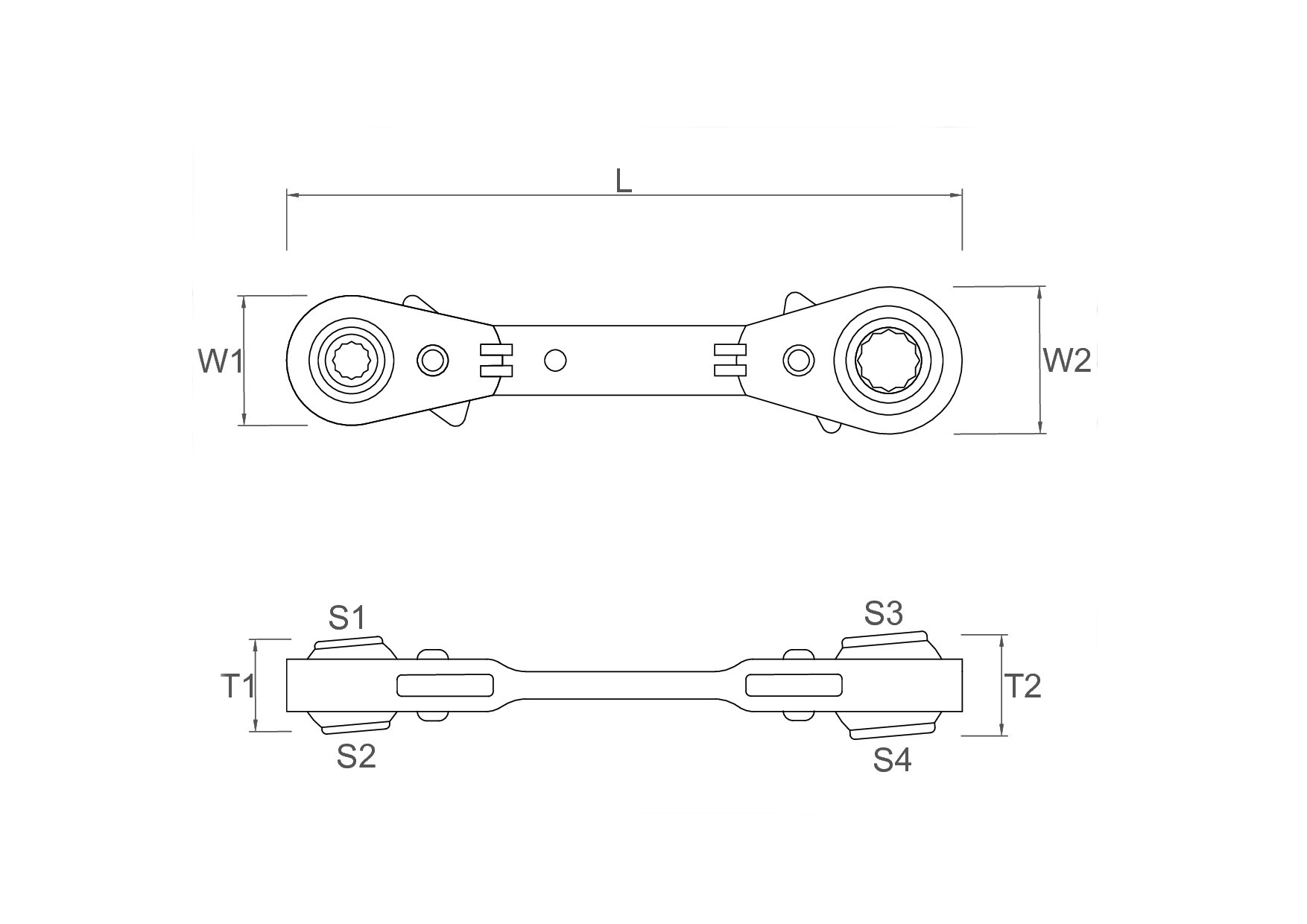

| ITEM NO. | SIZE | S1 | S2 | S3 | S4 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||||
| UWS8023 | 8x10˙12x13 | 10 | 8 | 13 | 12 | 140 | 27.3 | 30.7 | 19.6 | 23.6 |
| UWS8023-L | 8x10˙12x13 | 10 | 8 | 13 | 12 | 170 | 27.3 | 30.7 | 19.6 | 23.6 |
| UWS0234 | 10x12˙13x14 | 12 | 10 | 14 | 13 | 150 | 29.8 | 32.7 | 19.4 | 21.8 |
| UWS3792 | 13x17˙19x21 | 17 | 13 | 21 | 19 | 215 | 37.4 | 45.0 | 25.0 | 24.4 |
| UWS4792 | 14x17˙19x21 | 17 | 14 | 21 | 19 | 215 | 37.4 | 45.0 | 25.0 | 24.4 |
