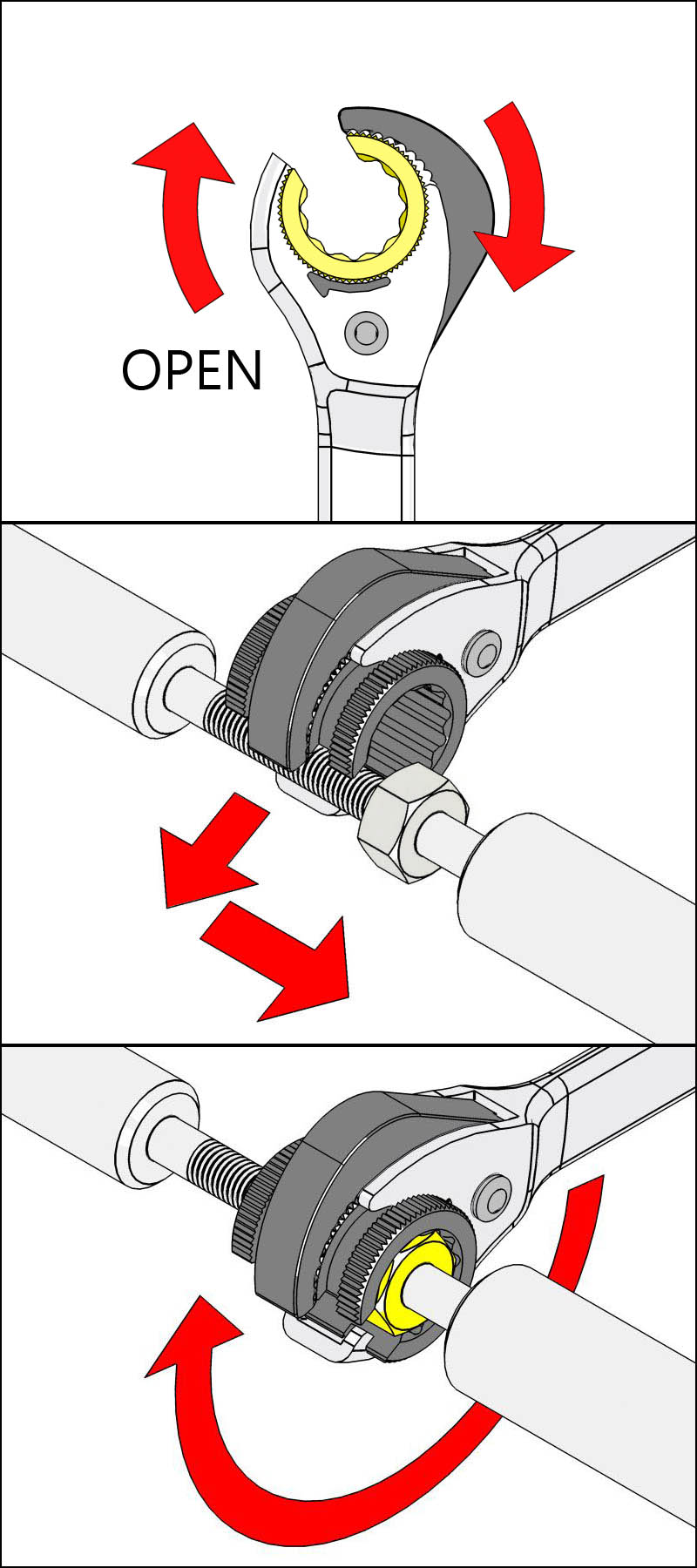

| Ratcher Flare Nut Wrench | ||||||||

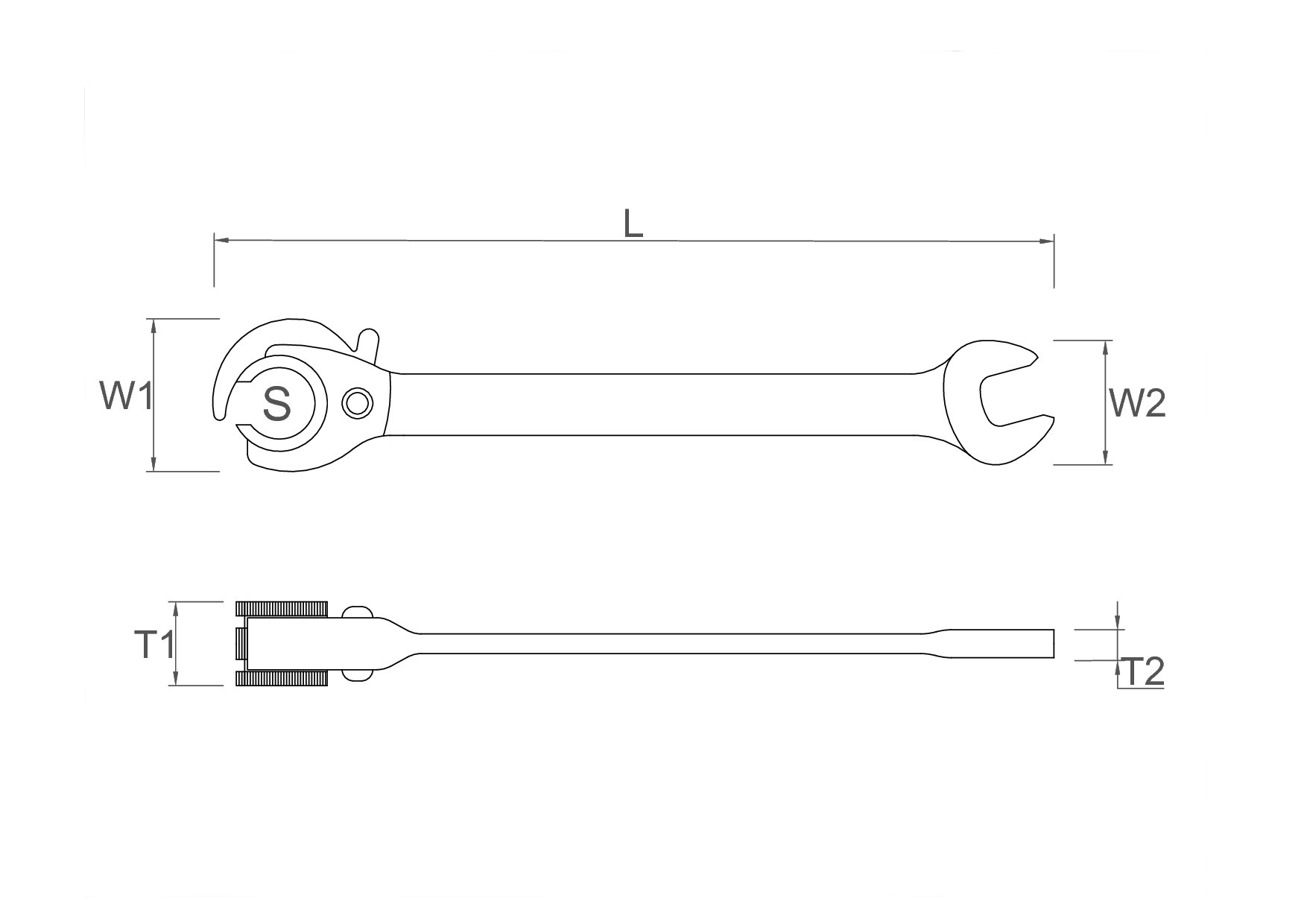

| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| 72TJ08 | 8 | 8 | 8 | 140 | 23.0 | 17.0 | 16.1 | 4.1 |
| 72TJ09 | 9 | 9 | 9 | 151 | 27.4 | 21.2 | 16.9 | 4.9 |
| 72TJ10 | 10 | 10 | 10 | 151 | 27.4 | 21.2 | 16.9 | 4.9 |
| 72TJ11 | 11 | 11 | 11 | 160 | 29.5 | 23.9 | 29.3 | 5.6 |
| 72TJ12 | 12 | 12 | 12 | 170 | 33.6 | 25.5 | 33.4 | 5.6 |
| 72TJ13 | 13 | 13 | 13 | 170 | 33.6 | 25.5 | 33.4 | 5.6 |
