葫蘆柄油管
| Ratcher Flare Nut Wrench | |||||

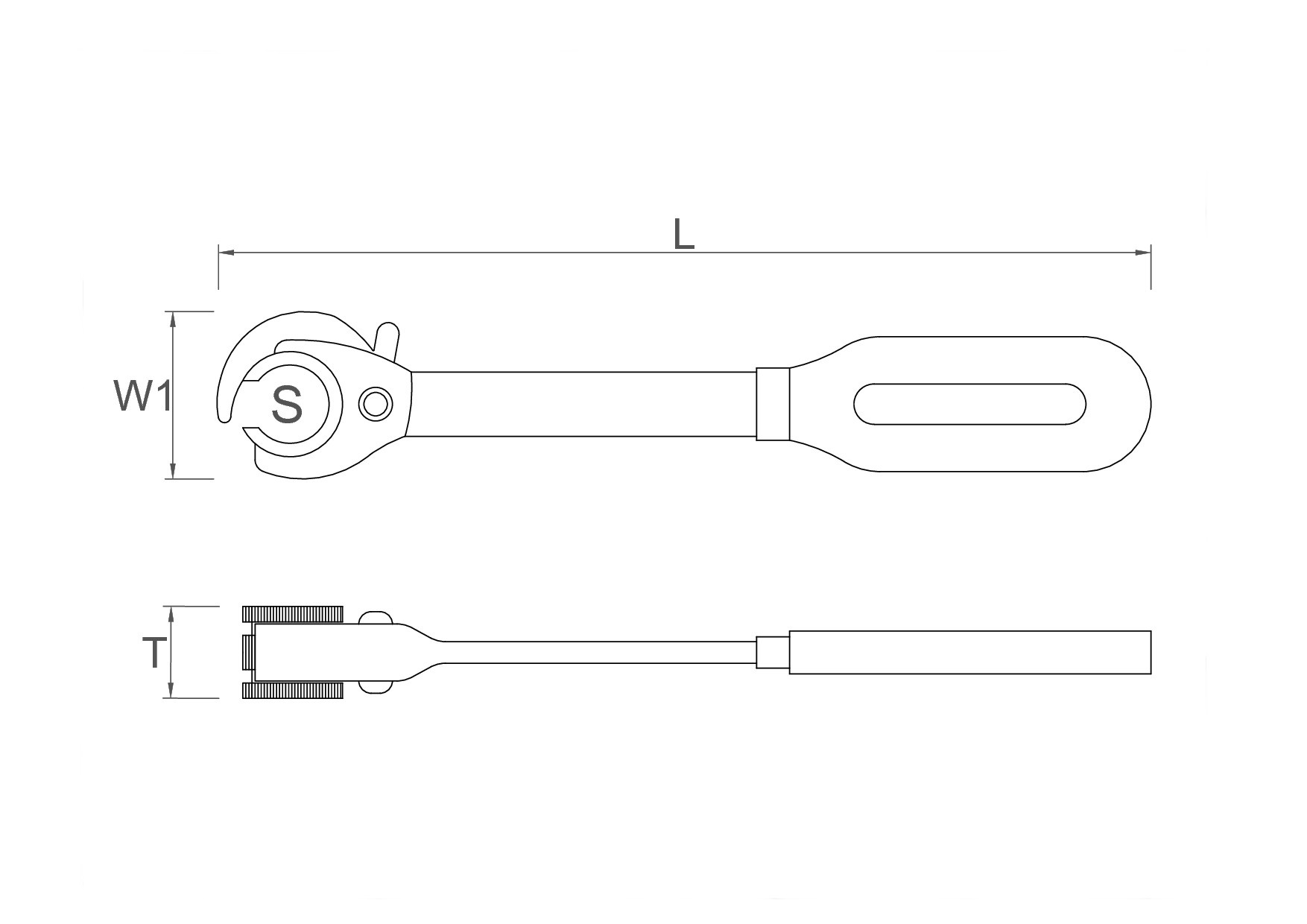

| ITEM NO. | SIZE | S | L | W | T |
| (mm) | (mm) | (mm) | (mm) | ||
| 72TJ08 | 8 | 8 | 145 | 23.7 | 15.8 |
| 72TJ09 | 9 | 9 | 155 | 28.0 | 17.0 |
| 72TJ10 | 10 | 10 | 155 | 28.0 | 17.0 |
| 72TJ11 | 11 | 11 | 160 | 30.1 | 17.0 |
| 72TJ12 | 12 | 12 | 175 | 33.8 | 17.8 |
| 72TJ13 | 13 | 13 | 175 | 33.8 | 17.8 |
| 72TJ14 | 14 | 14 | 191 | 37.9 | 17.9 |
| 72TJ15 | 15 | 15 | 191 | 37.9 | 17.9 |
| 72TJ17 | 17 | 17 | 210 | 41.0 | 20.0 |
| 72TJ18 | 18 | 18 | 229 | 46.3 | 20.1 |
| 72TJ19 | 19 | 19 | 229 | 46.3 | 20.1 |
| ITEM NO. | SIZE | S | L | W | T |
| (inch) | (mm) | (mm) | (mm) | ||
| 72TJ25 | 5/16" | 5/16" | 145 | 23.7 | 15.8 |
| 72TJ30 | 3/8" | 3/8" | 155 | 28.0 | 17.0 |
| 72TJ35 | 7/16" | 7/16" | 160 | 30.1 | 17.0 |
| 72TJ40 | 1/2" | 1/2" | 175 | 33.8 | 17.8 |
| 72TJ45 | 9/16" | 9/16" | 191 | 37.9 | 17.9 |
| 72TJ55 | 11/16" | 11/16" | 210 | 41.0 | 20.0 |
| 72TJ50 | 5/8" | 5/8" | 210 | 41.0 | 20.0 |
| 72TJ70 | 3/4" | 3/4" | 229 | 46.3 | 20.1 |
