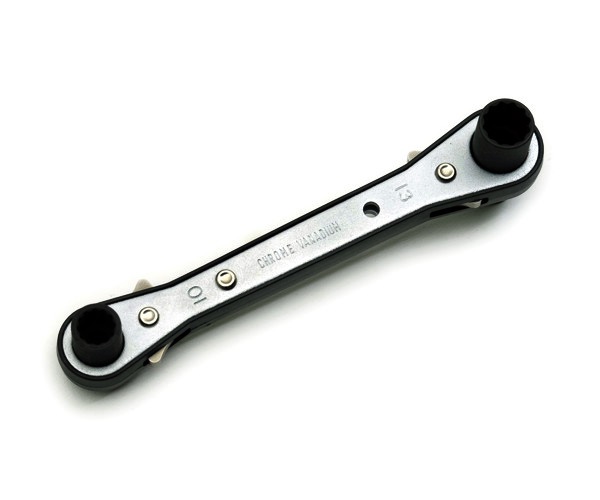

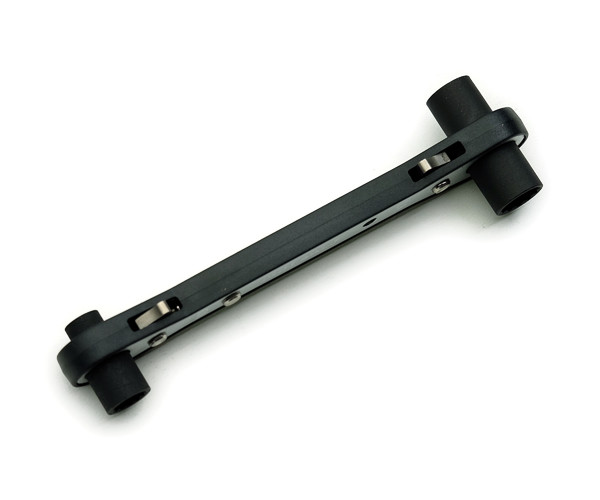

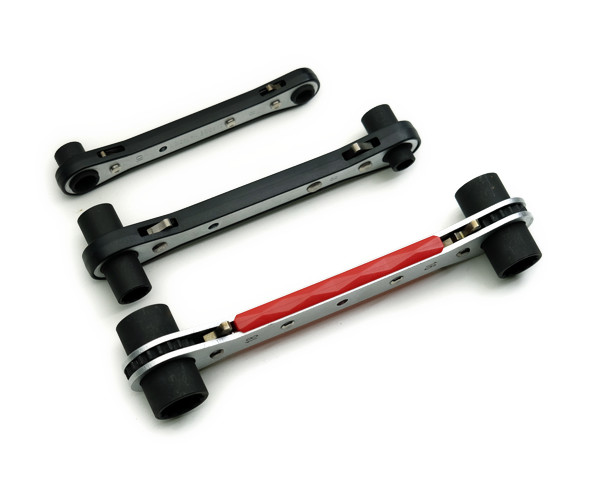

4 SIZE Ratchet Box Wernch(Long Gear)
| 4 SIZE Ratchet Box Wernch(Long Gear) | ||||||||||

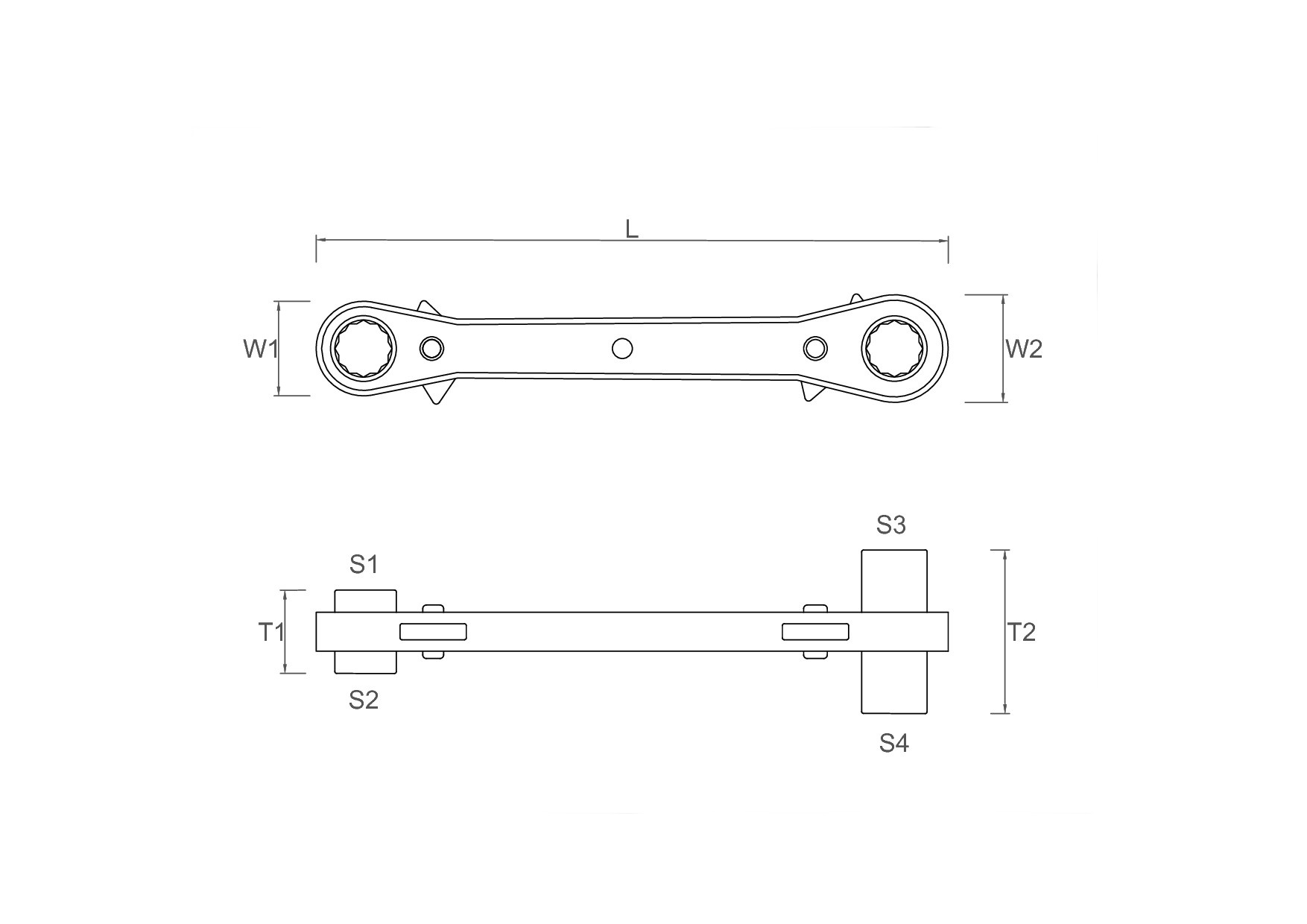

| ITEM NO. | SIZE | S1 | S2 | S3 | S4 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||||
| F0810L | 8x10 | 8 | 10 | 137 | 20.7 | 23.2 | 11.4 | 20.5 | ||
| F8203L | 8x12˙10x13 | 8 | 10 | 12 | 13 | 170 | 26.0 | 29.4 | 30.4 | 44.1 |
| F6879L | 16x18˙17x19 | 17 | 16 | 19 | 18 | 203 | 36.2 | 39.3 | 44.6 | 44.8 |
| F6879L(半包) | 16x18˙17x19 | 17 | 16 | 19 | 18 | 200 | 32.5 | 35.3 | 44.6 | 44.8 |
