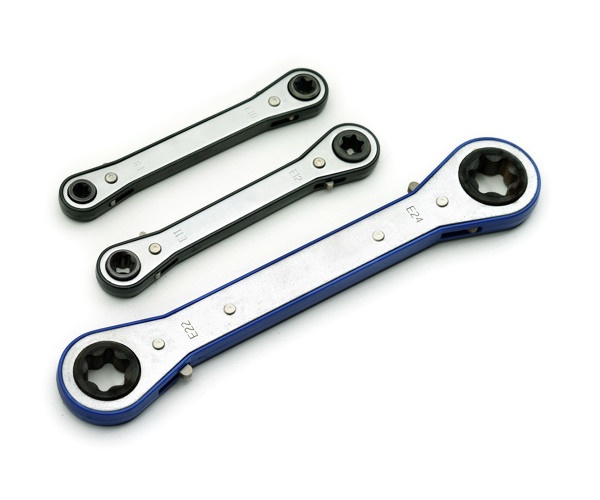

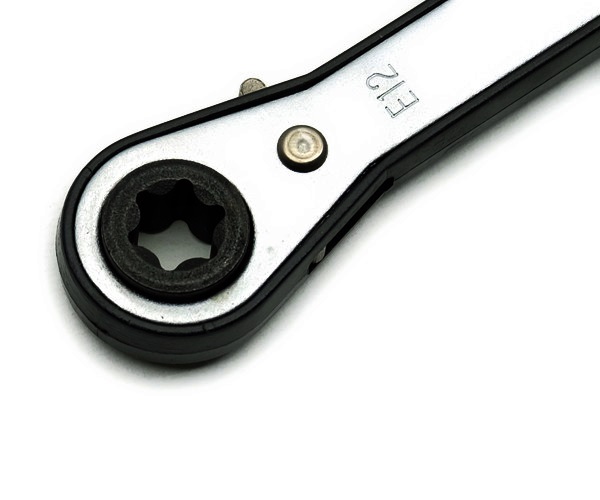

Flat type E size Ratchet Box Wernch
| Flat type E size Ratchet Box Wernch | ||||||||

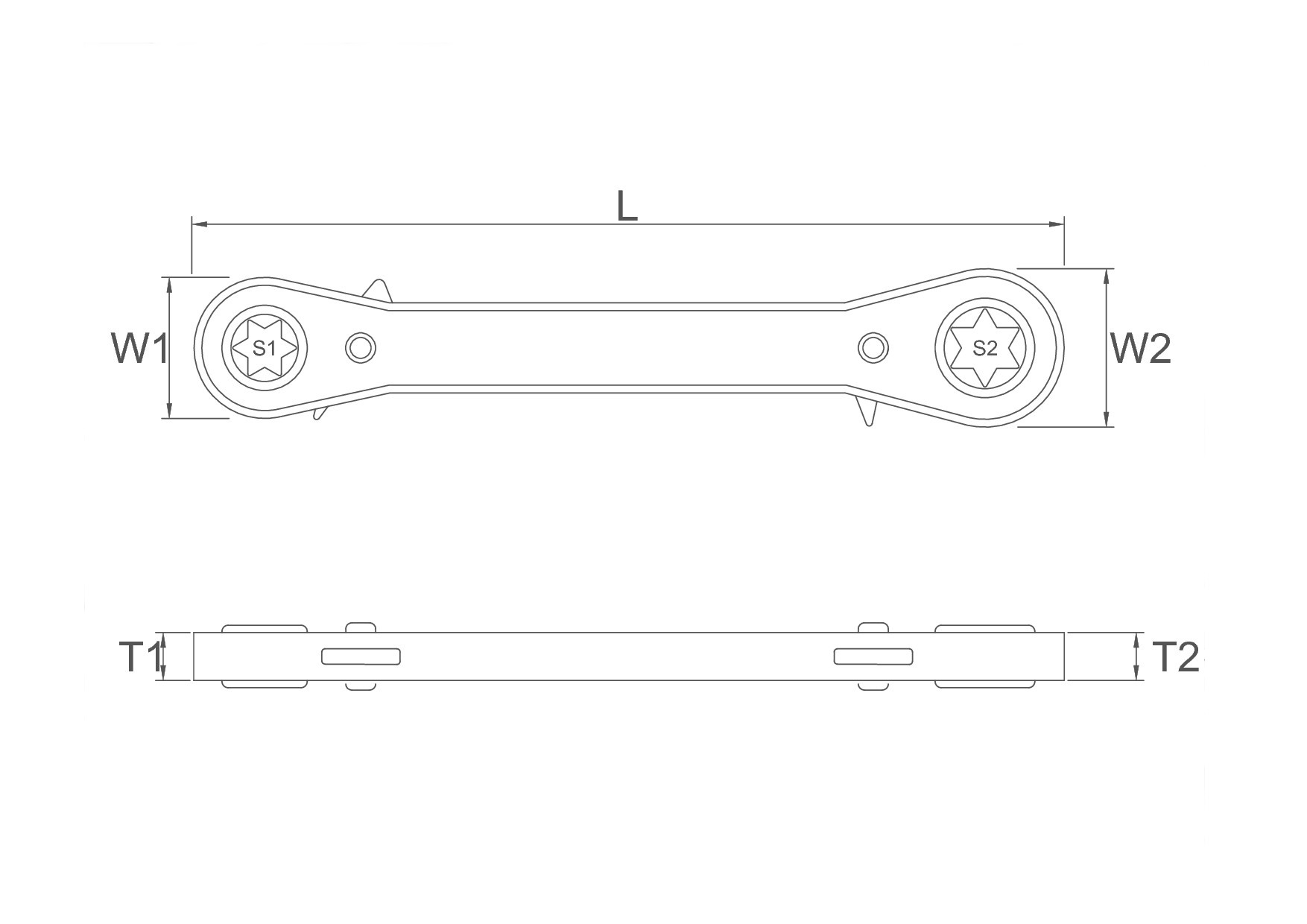

| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| FE0607 | E6xE7 | E6 | E7 | 116 | 20.0 | 20.0 | 8.0 | 8.0 |
| FE0810 | E8xE10 | E8 | E10 | 136 | 20.0 | 23.0 | 8.0 | 8.0 |
| FE1112 | E11xE12 | E11 | E12 | 144 | 23.0 | 26.0 | 8.0 | 8.0 |
| FE1416 | E14xE16 | E14 | E16 | 176 | 30.0 | 32.0 | 10.0 | 10.0 |
| FE1820 | E18xE20 | E18 | E20 | 210 | 37.0 | 40.0 | 11.0 | 11.0 |
| FE2224 | E22xE24 | E22 | E24 | 238 | 41.0 | 44.0 | 11.0 | 11.0 |
