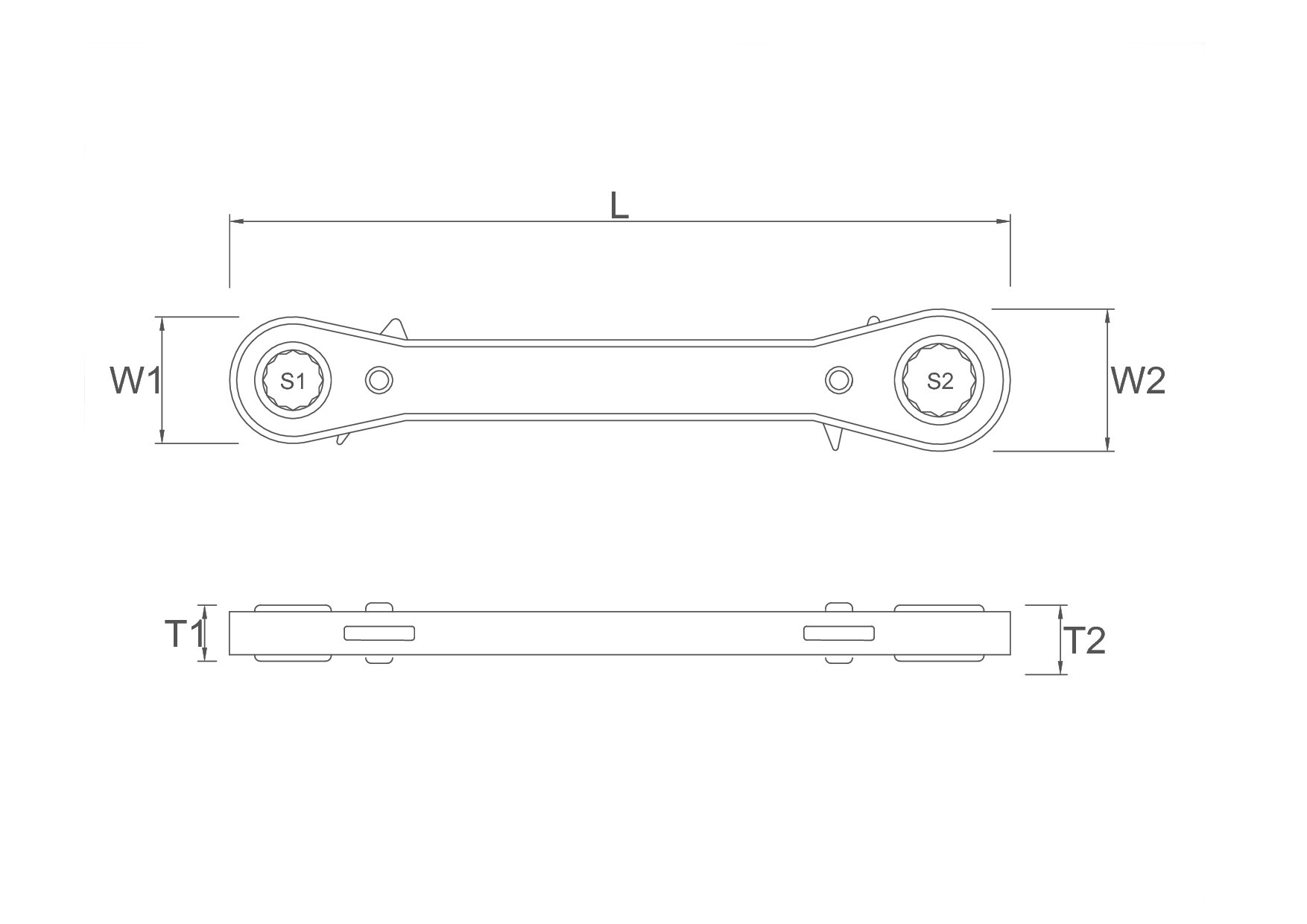

| Flat type Ratchet Box Wernch | ||||||||
| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| FPM5507 | 5.5x7 | 5.5 | 7 | 116 | 20.0 | 20.0 | 8.0 | 8.0 |
| FPM0607 | 6x7 | 6 | 7 | 116 | 20.0 | 20.0 | 8.0 | 8.0 |
| FPM0608 | 6x8 | 6 | 8 | 116 | 20.0 | 20.0 | 8.0 | 8.0 |
| FPM0708 | 7x8 | 7 | 8 | 136 | 20.0 | 23.0 | 8.0 | 8.0 |
| FPM0709 | 7x9 | 7 | 9 | 136 | 20.0 | 23.0 | 8.0 | 8.0 |
| FPM0809 | 8x9 | 8 | 9 | 136 | 20.0 | 23.0 | 8.0 | 8.0 |
| FPM0810 | 8x10 | 8 | 10 | 136 | 20.0 | 23.0 | 8.0 | 8.0 |
| FPM0910 | 9x10 | 9 | 10 | 144 | 23.0 | 26.0 | 8.0 | 8.0 |
| FPM1011 | 10x11 | 10 | 11 | 144 | 23.0 | 26.0 | 8.0 | 8.0 |
| FPM1012 | 10x12 | 10 | 12 | 144 | 23.0 | 26.0 | 8.0 | 8.0 |
| FPM1013 | 10x13 | 10 | 13 | 172 | 26.0 | 30.0 | 10.2 | 10.2 |
| FPM1113 | 11x13 | 11 | 13 | 172 | 26.0 | 30.0 | 10.2 | 10.2 |
| FPM1213 | 12x13 | 12 | 13 | 177 | 30.0 | 32.0 | 10.2 | 10.2 |
| FPM1214 | 12x14 | 12 | 14 | 177 | 30.0 | 32.0 | 10.2 | 10.2 |
| FPM1314 | 13x14 | 13 | 14 | 177 | 30.0 | 32.0 | 10.2 | 10.2 |
| FPM1315 | 13x15 | 13 | 15 | 177 | 30.0 | 32.0 | 10.2 | 10.2 |
| FPM1415 | 14x15 | 14 | 15 | 177 | 30.0 | 32.0 | 10.2 | 10.2 |
| FPM1417 | 14x17 | 14 | 17 | 203 | 37.0 | 40.0 | 11.0 | 11.0 |
| FPM1517 | 15x17 | 15 | 17 | 203 | 37.0 | 40.0 | 11.0 | 11.0 |
| FPM1618 | 16x18 | 16 | 18 | 203 | 37.0 | 40.0 | 11.0 | 11.0 |
| FPM1619 | 16x19 | 16 | 19 | 203 | 37.0 | 40.0 | 11.0 | 11.0 |
| FPM1719 | 17x19 | 17 | 19 | 203 | 37.0 | 40.0 | 11.0 | 11.0 |
| FPM1921 | 19x21 | 19 | 21 | 207 | 41.0 | 44.0 | 11.0 | 11.0 |
| FPM1922 | 19x22 | 19 | 22 | 207 | 41.0 | 44.0 | 11.0 | 11.0 |
| FPM2122 | 21x22 | 21 | 22 | 207 | 41.0 | 44.0 | 11.0 | 11.0 |
| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| FPM1722 | 7/32"x9/32" | 7/32" | 9/32" | 116 | 20.0 | 20.0 | 8.0 | 8.0 |
| FPM2025 | 1/4"x5/16" | 1/4" | 5/16" | 116 | 20.0 | 20.0 | 8.0 | 8.0 |
| FPM2227 | 9/32"x11/32" | 9/32" | 11/32" | 136 | 20.0 | 23.0 | 8.0 | 8.0 |
| FPM2530 | 5/16"x3/8" | 5/16" | 3/8" | 136 | 20.0 | 23.0 | 8.0 | 8.0 |
| FPM3035 | 3/8"x7/16" | 3/8" | 7/16" | 144 | 23.0 | 26.0 | 8.0 | 8.0 |
| FPM3540 | 7/16"x1/2" | 7/16" | 1/2" | 172 | 26.0 | 30.0 | 10.2 | 10.2 |
| FPM4045 | 1/2"x9/16" | 1/2" | 9/16" | 177 | 30.0 | 32.0 | 10.2 | 10.2 |
| FPM5055 | 5/8"x11/16 | 5/8" | 11/16 | 203 | 37.0 | 40.0 | 11.0 | 11.0 |
| FPM5060 | 5/8"x3/4" | 5/8" | 3/4" | 203 | 37.0 | 40.0 | 11.0 | 11.0 |
| FPM6065 | 13/16*7/8 | 3/4" | 13/16 | 207 | 41.0 | 44.0 | 11.0 | 11.0 |
| FPM6070 | 3/4"x7/8 | 3/4" | 7/8 | 207 | 41.0 | 44.0 | 11.0 | 11.0 |
