Offset type E size Ratchet Box Wernch
| Offset type E size Ratchet Box Wernch | ||||||||

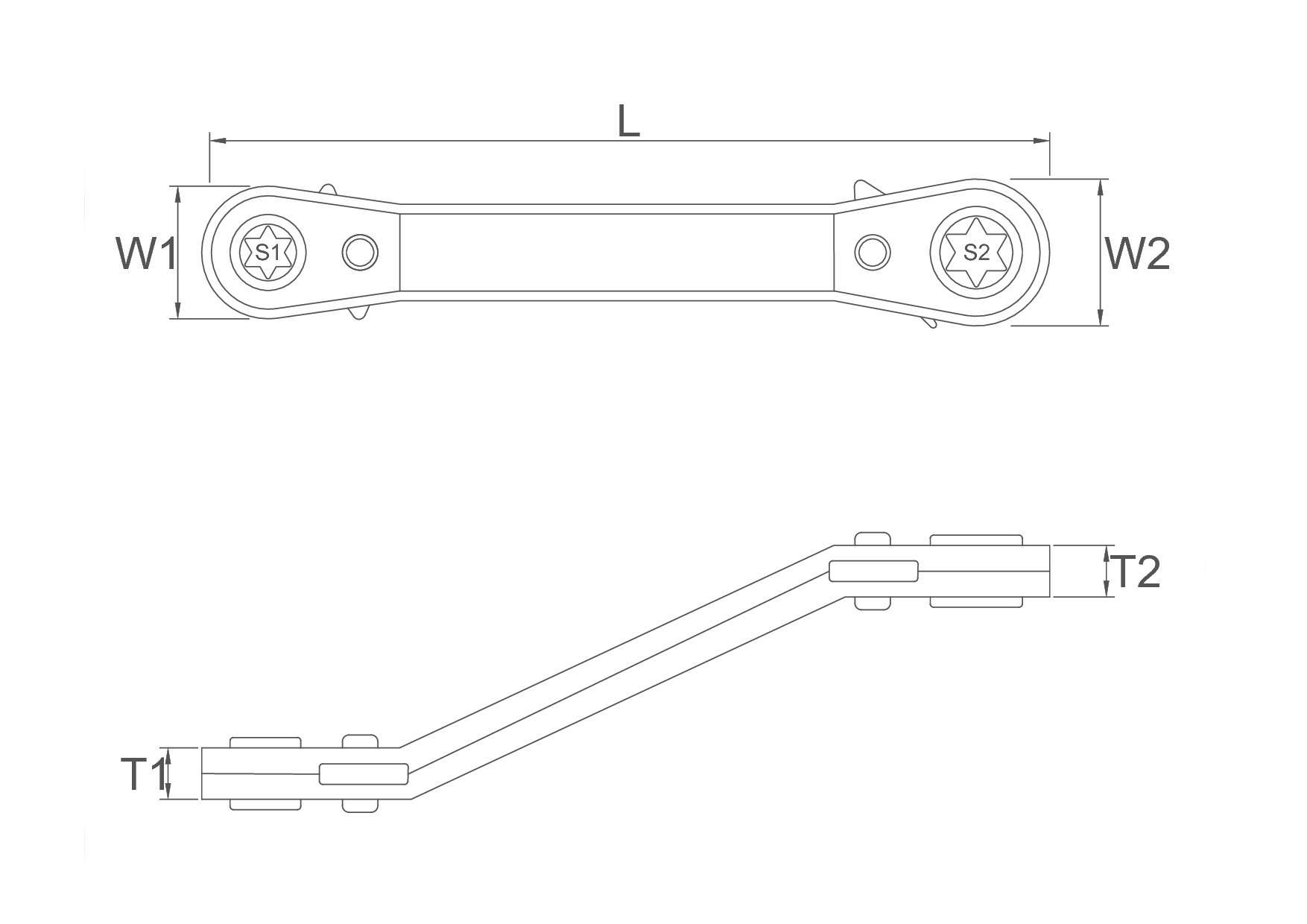

| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| OE0607 | E6xE7 | E6 | E7 | 112 | 20.0 | 20.0 | 8.0 | 8.0 |
| OE0810 | E8xE10 | E8 | E10 | 130 | 20.0 | 23.0 | 8.0 | 8.0 |
| OE1112 | E11xE12 | E11 | E12 | 138 | 23.0 | 26.0 | 8.0 | 8.0 |
| OE1416 | E14xE16 | E14 | E16 | 172 | 30.0 | 32.0 | 10.0 | 10.0 |
| OE1820 | E18xE20 | E18 | E20 | 203 | 37.0 | 40.0 | 11.0 | 11.0 |
| OE2224 | E22xE24 | E22 | E24 | 232 | 41.0 | 44.0 | 11.0 | 11.0 |
