Robpen Ratchet
| Robpen Ratchet | ||||||||

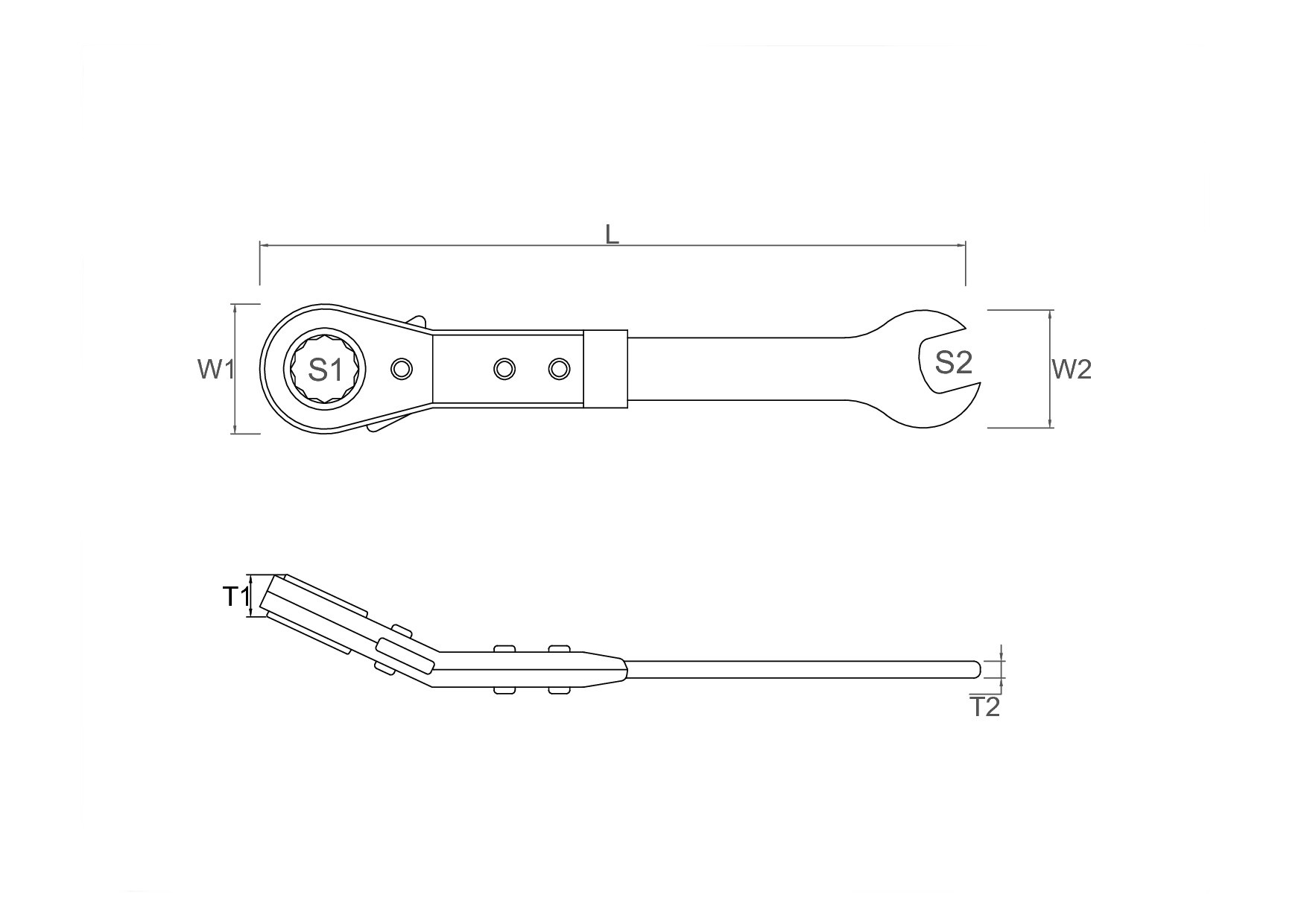

| ITEM NO. | SIZE | S1 | S2 | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | |||
| R06 | 6 | 6 | 6 | 137 | 20.7 | 19.9 | 11.0 | 3.5 |
| R07 | 7 | 7 | 7 | 137 | 20.7 | 19.9 | 11.0 | 3.5 |
| R08 | 8 | 8 | 8 | 142 | 20.7 | 19.9 | 11.0 | 3.5 |
| R09 | 9 | 9 | 9 | 157 | 26.8 | 21.9 | 11.0 | 3.5 |
| R10 | 10 | 10 | 10 | 157 | 26.8 | 21.9 | 11.6 | 3.5 |
| R11 | 11 | 11 | 11 | 160 | 26.8 | 21.9 | 11.2 | 3.5 |
| R12 | 12 | 12 | 12 | 191 | 32.3 | 29.0 | 14.0 | 5.2 |
| R13 | 13 | 13 | 13 | 191 | 32.3 | 29.0 | 14.0 | 5.2 |
| R14 | 14 | 14 | 14 | 195 | 32.3 | 32.0 | 14.0 | 5.2 |
| R15 | 15 | 15 | 15 | 195 | 32.3 | 32.0 | 14.0 | 5.2 |
| R17 | 17 | 17 | 17 | 220 | 38.8 | 36.2 | 14.0 | 5.2 |
| R19 | 19 | 19 | 19 | 220 | 38.8 | 36.2 | 14.0 | 5.2 |
