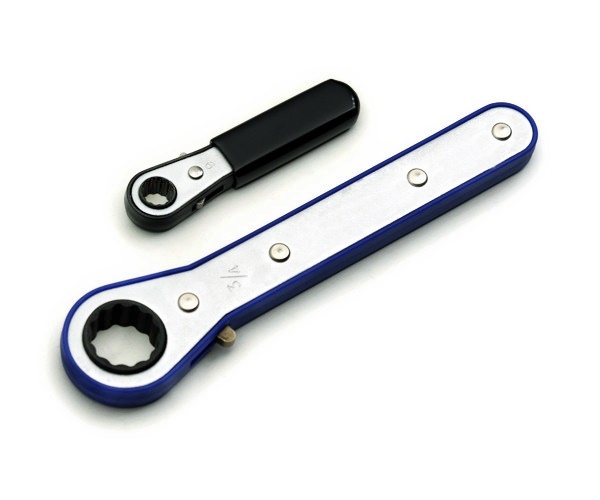

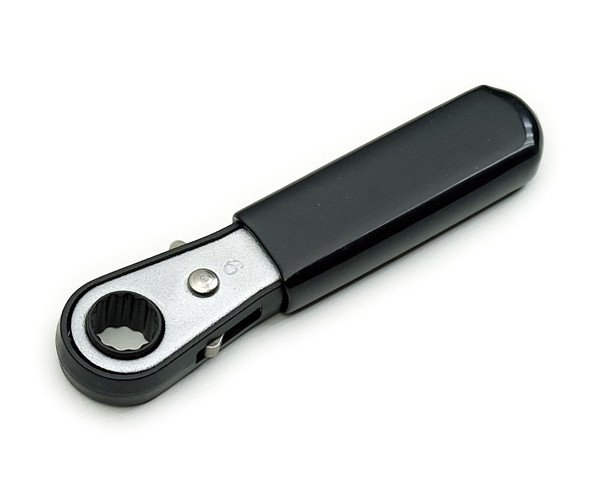

Single head Ratchet
| Single head Ratchet | |||||||

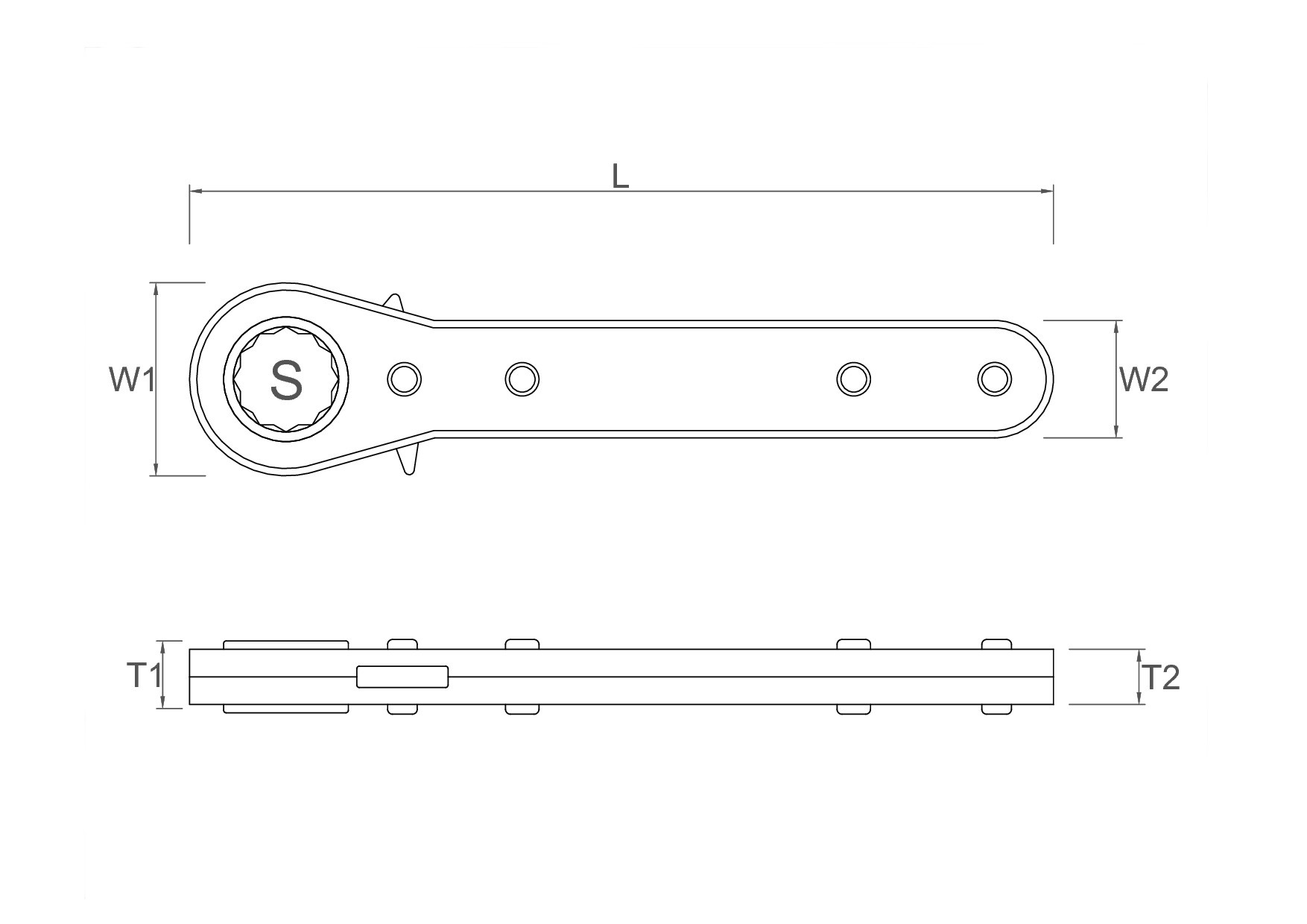

| ITEM NO. | SIZE | S | L | W1 | W2 | T1 | T2 |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 9 | 9 | 90 | 20 | 17.7 | 10 | 11.5 | |
| 17 | 17 | 180 | 39.2 | 22.4 | 14 | 13.6 | |
| ITEM NO. | SIZE | S | L | W1 | W2 | T1 | T2 |
| (inch) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| SH25 | 5/16" | 5/16" | 90 | 20 | 17.7 | 10 | 11.5 |
| SH60 | 3/4" | 3/4" | 180 | 39.2 | 22.4 | 14.0 | 13.6 |
